Full Welded Ball Valve

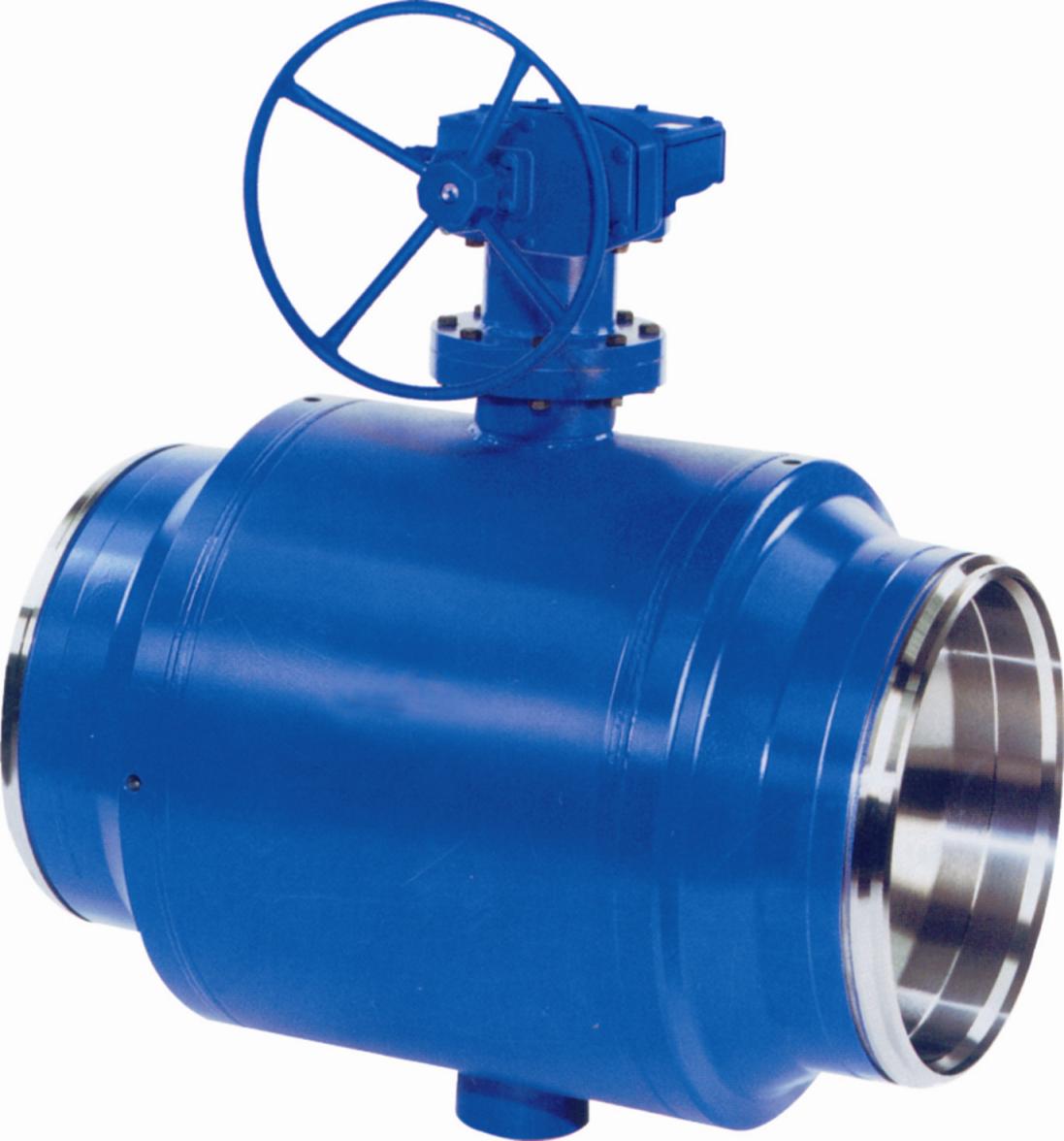

Full Welded Trunnion Mounted Ball Valve
150Lb/300Lb/600Lb/900Lb/1500Lb
150Lb/300Lb/600Lb/900Lb/1500Lb
| FEATURES | SPECIFICATIONS | |
| Size: 2"~60" | Design | ASME B16.34/API 6D |
| Class: 150~1500Lb | Face to Face | ASME B16.10 |
| Three Pieces Forged Steel Body | End Flange | ASME B16.5 |
| Trunnion Mounted Ball, Full Bore | BW End | ASME B16.25 |
| Anti-static Device | Test | API 598/API 6D |
| Blow-out Proof Stem | Fire Safe Test | API 607/API 6FA |
| Fire Safe Design | Special | NACE MR-01-75 |
| Emergency Sealant Injector | Application | Chemical processing |
| Oil Field & Power Plant | ||
| Hydrocarbon processing | ||
| Vent Valve, Drain Valve | ||
| Lifting Lugs and supporting feets | ||
| STANDARD MATERIAL LIST | ||
| No. | Parts Name | Material |
| 1 | Bonnet | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 2 | Spring | Inconel X-7505, SS304, SS316 |
| 3 | Seat | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 4 | O-ring | PTFE |
| 5 | Seat Ring | R-PTFE, PEEK, PPL , DEVLON |
| 6 | Body | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 7 | Ball | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 8 | O-ring | Viton |
| 9 | Trunnion | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 10 | Sliding Bearing | SS304+PTFE |
| 11 | O-ring | Viton |
| 12 | O-ring | Viton |
| 13 | Support | Q235-A |
| 14 | Drain Valve | 1020+ZN, A182 F304, F304L, F316, F316L |
| 15 | Grese Valve | 1020+ZN, A182 F304, F304L, F316, F316L |
| 16 | Vent | 1020+ZN, A182 F304, F304L, F316, F316L |
| 17 | Stem | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 18 | Anti-static Spring | Stainless Steel |
| 19 | O-ring | Viton |
| 20 | Gland Gasket | SS304+Graphite |
| 21 | Sliding Bearing | SS304+PTFE, SS316+PTFE |
| 22 | O-ring | Viton |
| 23 | Bolt | A193 B7, B7M, B8, B8M |
| 24 | Gasket | SS304+Graphite |
| 25 | Lifting Lug | Q235-A |
| 26 | Bonnet | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 27 | Top Flange | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
| 28 | Stud | A193 B7, B7M, B8, B8M |
| 29 | Packing | Graphite |
| 30 | Key | 1045, A182 F304, F304L, F316, F316L |
| 31 | Worm Gear | Duction Iron |
| 32 | Bolt | A193 B7, B7M, B8, B8M |
| 33 | Gasket | SS304+Graphite |
