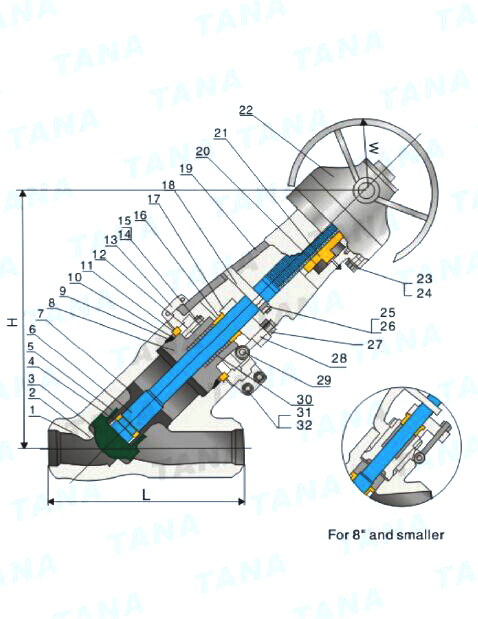

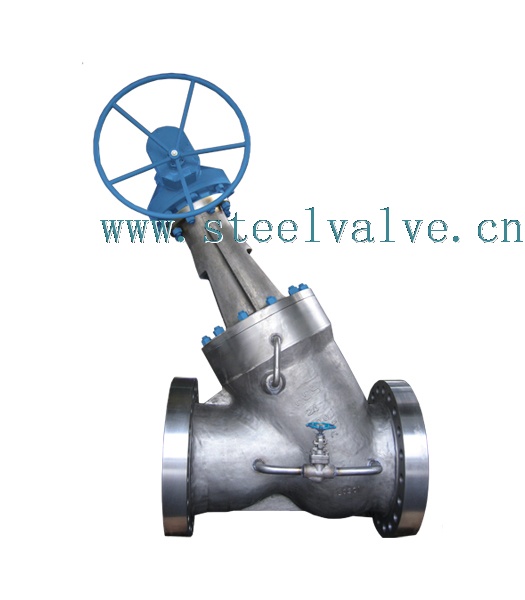

Y-Type Pressure Seal Bonnet Globe Valve
Y-Type Pressure Seal Bonnet Globe Valve
| Main Dimensions & Weight |
| Pressure | Size | Main Dimension | Weight(kg) | (N.M)Toqure | Cv | |||||||
| mm | in |
LRF
|
LBW
|
LRJ
|
H |
H1
|
W | RF | BW | |||
Class600 |
40 |
11/2
|
241 | 241 | 241 | 425 | - | 200 | 34 | 32 | 30 | - |
| 50 | 2 | 292 | 292 | 295 | 460 | - | 250 | 52 | 44 | 66 | - | |
| 65 |
21/2
|
330 | 330 | 333 | 505 | - | 250 | 63 | 53 | 103 | - | |
| 80 | 3 | 356 | 356 | 359 | 556 | - | 350 | 87 | 75 | 175 | 100 | |
| 100 | 4 | 432 | 432 | 435 | 670 | - | 450 | 144 | 123 | 332 | 185 | |
| 150 | 6 | 559 | 559 | 562 | 905 | - | 610 | 355 | 298 | 819 | 440 | |
| 200 | 8 | 660 | 660 | 664 | 1060 | - | 610 | 555 | 499 | 1208 | 780 | |
| 250 | 10 | 787 | 787 | 791 | - | 1219 | 610 | 875 | 793 | 2266 | 1200 | |
| 300 | 12 | 838 | 838 | 841 | - | 1570 | 610 | 1280 | 1134 | 4140 | 1350 | |
|
Class900 |
80 | 3 | 381 | 381 | 384 | 635 | - | 350 | 150 | 120 | - | 90 |
| 100 | 4 | 457 | 457 | 460 | 774 | - | 500 | 247 | 200 | - | 170 | |
| 150 | 6 | 610 | 610 | 613 | 1041 | - | 500 | 410 | - | - | 400 | |
| 200 | 8 | 737 | 737 | 740 | 1333 | - | 610 | 790 | - | - | 710 | |
| 250 | 10 | 838 | 838 | 841 | - | 1625 | 610 | 1400 | - | 5145 | 1100 | |
| Class1500 | 80 | 3 | 470 | 470 | 473 | 635 | - | 350 | 122 | - | - | 95 |
| 100 | 4 | 546 | 546 | 549 | 736 | - | 450 | 172 | - | - | 170 | |
| 150 | 6 | 705 | 705 | 711 | 1092 | - | 610 | 510 | - | - | 395 | |
| 200 | 8 | 832 | 832 | 841 | - | 1482 | 500 | 875 | - | - | 695 | |
| 250 | 10 | 991 | 991 | 1000 | - | 1549 | 610 | 1675 | - | 8445 | 1085 | |
