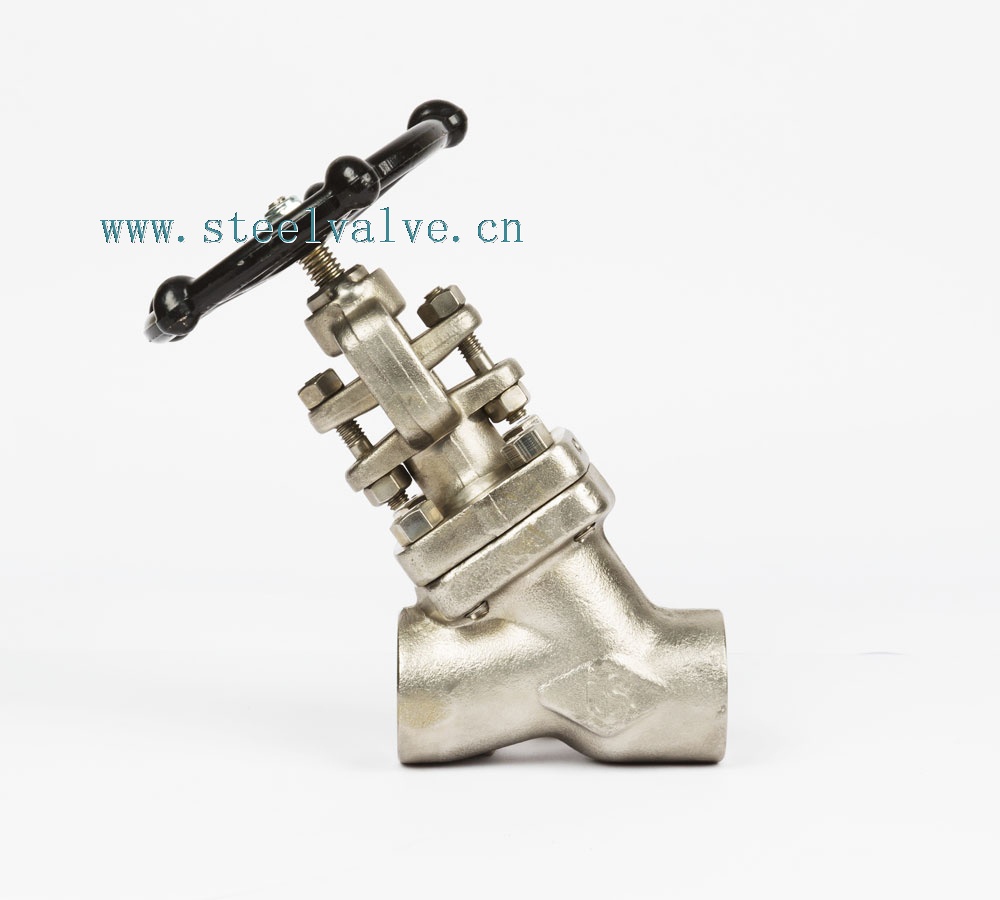

Y-Type Bolted Bonnet Forge Steel Globe Valve
Y-Type Bolted Bonnet Forge Steel Globe Valve
Materials
NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
Type A105 | Type A182 F22 | Type A182 304(L) | A182 F182 F316(L) | ||
1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
3 | Stem | A182 F6 | A182 F304(L) | A182 F316(L) | |
4 | Pressure Seat | A105 | A182 F304 | A182 F304(L) | A182 F316(L) |
5 | Pressure Ring | A182 F304(L) | A182 F316(L) | ||
6 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
7 | P.S. Washer | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
8 | Yoke Nut | A276 410 | |||
9 | Retaining Nut | A194 2H | A194 4 | A194 8 | A194 8M |
10 | H.W. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
11 | Hand wheel | A197 | |||
12 | Wafer board | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
13 | Bolt | A193 B7 | A193 B16 | A193 B8 | A1983 B8M |
14 | Nut | A194 2H | A194 4 | A194 8 | A194 8M |
15 | Gland Flange | A216 WCB | A351 CF8 | ||
16 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A1983 B8M |
17 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
18 | Pin | A276 420 | A182 F304 | ||
19 | Gland | A276 420 | A182 F304 | ||
20 | Bearing Ear | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
21 | P.S. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
22 | Stem Packing | Flexible graphite | PTFE | ||
Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3,CH3OOH etc | ||
Suitable Temperature | -29°C~425°C | -29°C~550°C | -29°C~180°C |
ASME Pressure Classes 800 Lb
Bolted Bonnet-Threaded and Socket weld Ends-Dimensions (mm) and Weights (kg)
NPS | 1/2~ | 3/4~ | 1~ | 1-1/4~ | 1-1/2~ | 2~ |
L | 98 | 111 | 120 | 140 | 140 | 170 |
H(OPEN) | 175 | 215 | 254 | 305 | 305 | 365 |
W | 100 | 125 | 160 | 160 | 180 | 200 |
Weights | 5 | 6.3 | 7.6 | 9.8 | 13.8 | 14.0 |
